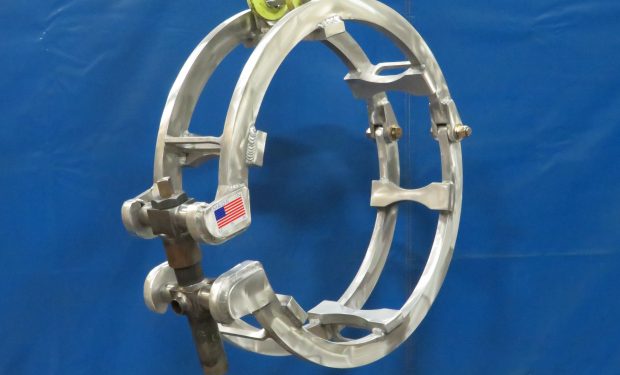

Aluminum Line-Up Clamp – ALUC-1

Aluminum Line-Up Clamp - ALUC-1

WorldWide Machining & Welding, Inc., has developed a Aluminum Line-Up Clamp – ALUC-1

Field Application

The ALUC-1 aligns high and low grade tensile pipe in mainline, light tie-in or fabrication applications.  The ALUC-1 is especially useful in rough terrain or street applications where clamps may need to be moved by hand or where equipment is not readily available.

Features/Specifications

  • Lightweight 6061 T-6 material.
  • Single screw design.
  • Reinforced radiused cross blocks and individual fastened hinge points allows for 25% more root bead placement than conventional clamps.
  • Clamp design incorporates built-in lifting handles for ease of handling.
  • Wider design allows room for Stick, MIG, or TIG applications as well as grinder access.
